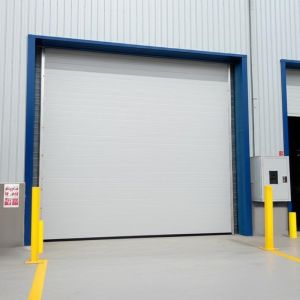

Industrial Vertical Lift Commercial Overhead Sectional Door With Transparent Window 50mm 80mm Thickness Insulated Sectional Garage Door

Product Characters:

1.All the products produced by RICH building material factory need get throught three
strict inspections before packing: Raw material cutting test, Production process inspection, The finished debugging.
2.Providing customized service to apply each customer requirements, we will try our best to achieve 100% customer satisfaction.

Sectional Door Details:

1.Vertical guide rail 2.Vertical side frame 3.Door shaft 4.Torsion spring fracture protection device
5.Sheave 6.Torsion spring sleeve 7.Balance spring mechanism (torsion spring) 8.Coupling
9.Inner bracket 10.Top roller bracket 11.Roller bracket 12.Big back muscles (optional)
13.Wire rope break protection device 14.Sandwich door panel 15.Inner hinge
16.Bottom aluminum profile and bottom sealing strip 17.Side seal 18.Top aluminum profile
19.Top sealing strip 20.Panel side cover with fixing holes
21.Step handle 22.End buffer 23.Ceiling mounting bracket

All measurements are made indoors and each value must be measured at at least three points::

H - the height of the door opening (the distance from the ground to the top of the door opening)
B - the width of the door opening (the distance from the left edge of the door opening to the right edge)
h - at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling)
b1/b2 - requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room

When measuring H and B, take the maximum value as the final size
When measuring h, b1, b2 and L, take the smallest value as the final size

Packing and Shipping:

FAQ:

Q1: What is the delivery time?
A1: 15-20 days for the standard color and 30 days for the customized one. It depends on the details.

Q2: What about your package?
A2: Using four steps of package, your goods are given an al-round protection regardless of the cost.We have been exporting lots of products overseas, no client complaint about the package until now.

Q3: What is your payment items?
A3: Normally we accept 40%-50% of total amount by T/T as deposit and balance before delivery. If you have any other
requirements, please contact us.

Q4: Can I come to your factory before I make the order?
A4: Of course. We"d love to have you come. Our factory located in Foshan, very near to Guangzhou Subway and Air
port. we would like to pick up you to our factory.

Q5: Can I get a free sample before ordering?
A5: We would like to provide sample before your ordering but it is not free. And you will get a refund after you place an
official order. It is a good way to show the sincerity for both of us.
